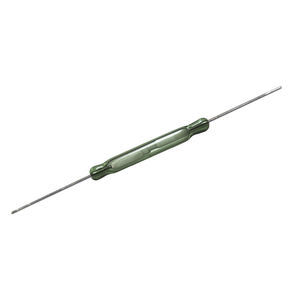

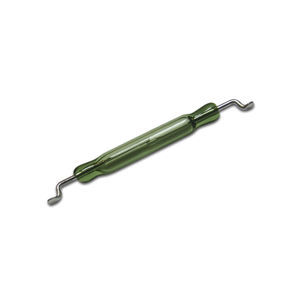

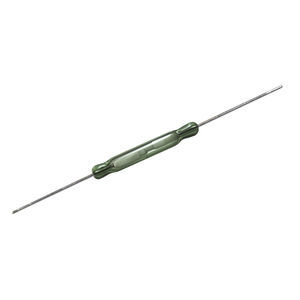

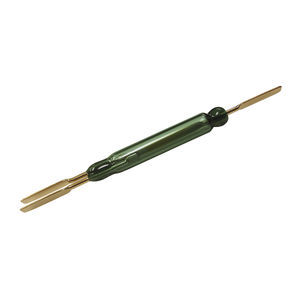

Single-pole reed switch RI-70

subminiatureultra-miniature

Ultra-miniature dry-reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices. Seriés Features ■ Idéal for ATE switching ■ 7 mm glass length ■ Contact layers: gold, sputtered ruthénium ■ Superior glass-to-metal seal and blade alignment ■ Excellent life expectancy and reliability ■ RoHS Compilant AT-Customization / Performed Leads Besides the standard models, customized products can also be supplied offering the following options: • Operate and release ranges to customer specification • Cropped and/or performed leads Coils All characteristics are measured using the Philips Standard Coil. For definitions of the Philips Standard Coil, refer to “Application Notes” in the Reed Switch Technical & Application Information Section of this catalog. Life expectancy and reliability The life expectancy data given below are valid for a coil energized at 1.25 times the published maximum operate value for each type in the RI-70 series. Specifications Contact Form: A Switching Capacity: 10 W/VA Max. Switching Voltage: 170 Vdc Max. Switching Current: 500 mA Max. Glass Length: 0.28in (7.0mm) Diameter: 0.07in (1.8mm)
