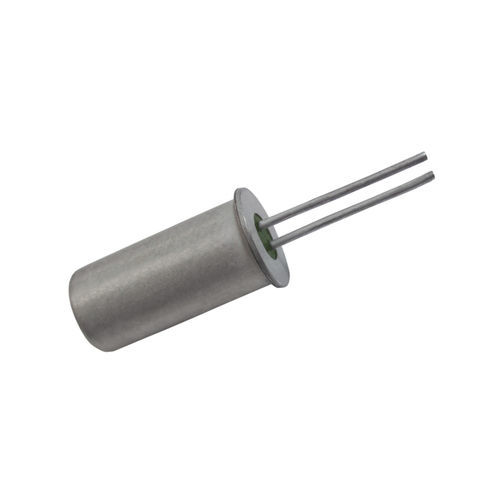

Analog tilt switch CM1323 series
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
Switching Voltage: 120Vac Max.
Switching Current: 0.1A Max.
Switching Capacity: 48VA Max.
Differential Angle: 10° Max.
Contact Resistance: 1.0 Ohms Max.
Size: Over All Length: 0.760in (19.3mm)
Diameter: 0.185in (4.7mm)
Electrode Diameter: 0.018in (0.46mm)
Electrode Spacing: 0.050in (1.27mm)
Tilt Switch – General Purpose
Catalogs
Mercury tilt switches
2 Pages
