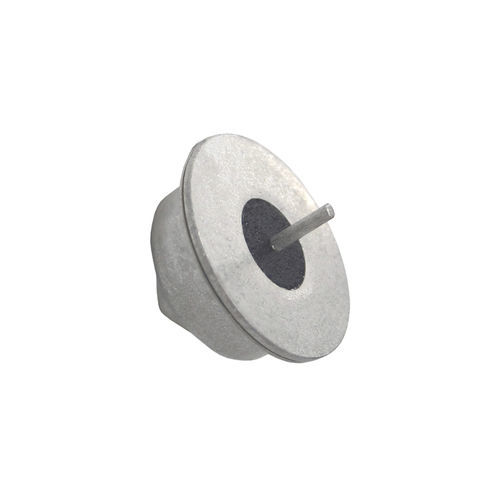

Analog tilt switch CM1725
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
Switching Voltage: 120Vac Max.
Switching Current: 1.5A Max.
Switching Capacity: –
Operating Angle: 25°±10°
Contact Resistance: 5 Ohms Max.
Size: Over All Length: 0.433in (11.0mm)
Diameter: 0.482in (12.3mm)
Electrode Diameter: 0.030in (0.76mm)
Tip-Over Switch (Normally Closed)
