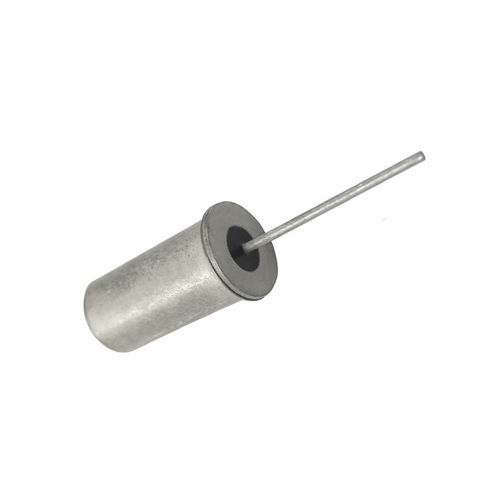

Analog tilt switch CW1300 series
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
RoHS COMPLIANT
Switching Voltage: 60Vac Max.
Switching Current: 0.25A Max.
Switching Capacity: 5VA Max.
Contact Resistance: 30 ohms Max.
Size: Length 22.3 (.877in)
Diameter: 4.7mm (.185in)
FEATURES
• Resistant to Ambient Environmental Conditions
• Case Material : Tin Plated
• Hermetically Sealed & Inert Gas Filled
• Customization Available
GENERAL SPECIFICATIONS
Contact Capacity - 60 V MAX, 0.25 A MAX, 3 VA MAX
Contact Résistance - 30 Q MAX Measured 10° Below Horizontal at 5 VDC
Make Angle - 10° MAX Below Horizontal
Break Angle - 10° MAXAbove Horizontal
Differential Angle - 15° MAX
Operating Température - -37° to 100°C
