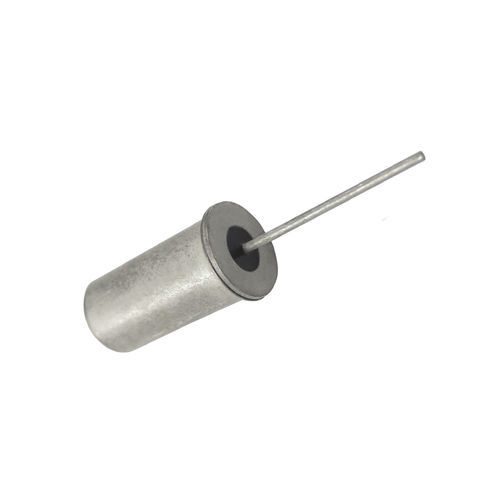

Analog tilt switch CW1313 series

RoHS COMPLIANT Contact Capacity: 60V Max Contact Resistance: 100 ohms Max. Differential Angle: 10deg Max Size: Length 22.1 (.870in) Diameter: 5.94mm (.234in) FEATURES • Resistant to Ambient Environmental Conditions • Case Material : Tin Plated • Hermetically Sealed & Inert Gas Filled • Customization Available GENERAL SPECIFICATIONS - Contact Capacity - 60 Volts MAX, 0.25 A MAX, 3 VA MAX Contact Résistance - 100 OHMS MAX Measured at 10° Below Horizontal at 5 VDC Differential Angle - 15° MAX Make Angle - 10° Below Horizontal Break Angle - 10° Above Horizontal Operating Température - -37° to 100°C
