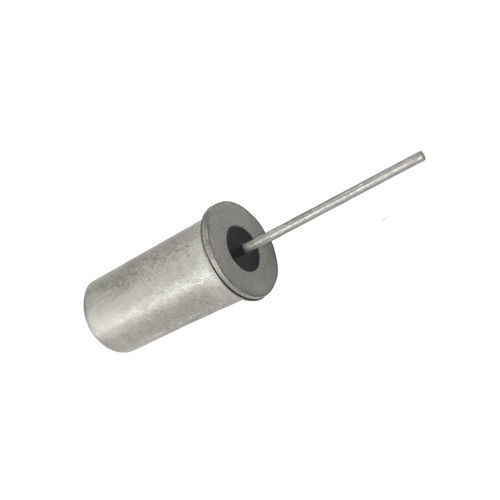

Analog tilt switch CW1317-0
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
RoHS COMPLIANT
Switching Voltage: 60Vac Max.
Switching Current: 0.25A Max.
Switching Capacity: 3VA Max.
Contact Resistance: 100 ohms Max.
Size: Length 22.23mm (.875in)
Diameter: 5.94mm (.234in)
FEATURES
• Resistant to Ambient Environmental Conditions
• Housing Material : Tin Plated
• Hermetically Sealed and Inert Gas Filled
SPECIFICATION
Contact Capacity - 0.25 A, 60 V MAX, 3 VA MAX
Contact Résistance - 100 Q MAX
Make Angle - 10° Below Horizontal
Break Angle - 10° Above Horizontal
Differential Angle - 15° MAX
Operating Température - -37° to 100°C
