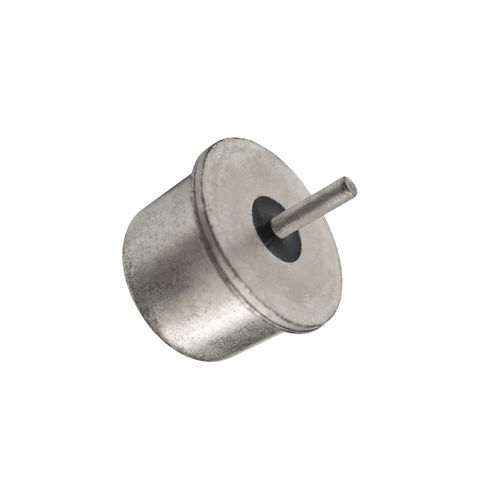

Analog tilt switch CW1430 series
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
RoHS COMPLIANT
Contact Capacity: 60V Max
Contact Resistance: 10 ohms Max.
Size: Length 11.71 (.461in)
Diameter: 9.27mm (.365in)
FEATURES
• Resistant to Ambient Environmental Conditions
• Case Material : Tin Plated
• Hermetically Sealed & Inert Gas Filled
• Customization Available
GENERAL SPECIFICATIONS
Contact Capacity - 0.25 A, 60 V MAX, 3 VA MAX
Operating Angle - Open with Electrode at Vertical Up or Down Close Between 20° - 40° and 90° -110°
Contact Résistance - 10 O MAX
Operating Température - -37° to 100°C
Catalogs
Non mercury switches
2 Pages
