Contact Form/Style: Normally Open
Switching Voltage: 24Vdc Max.
Switching Current: 0.25A Max.
Switching Capacity: 5VA Max.
Activation Level: 10.0-14.9G
Contact Resistance: 10 Ohms Max.
Size: Over All Length: 0.709in (18.0mm)
Diameter: 0.181in (4.6mm)
Electrode Diameter: 0.020in (0.50mm)
Electrode Spacing: 0.114in (2.92mm)

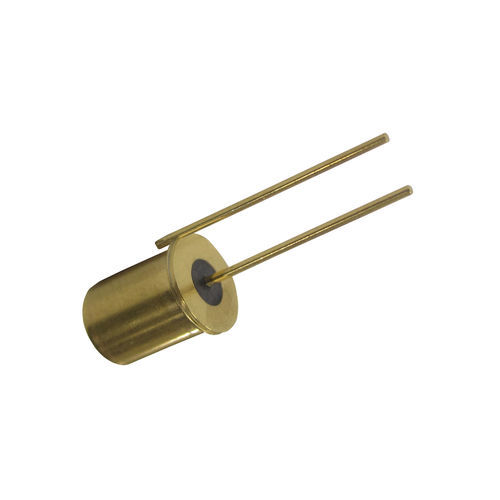

Acceleration and Shock Switch
