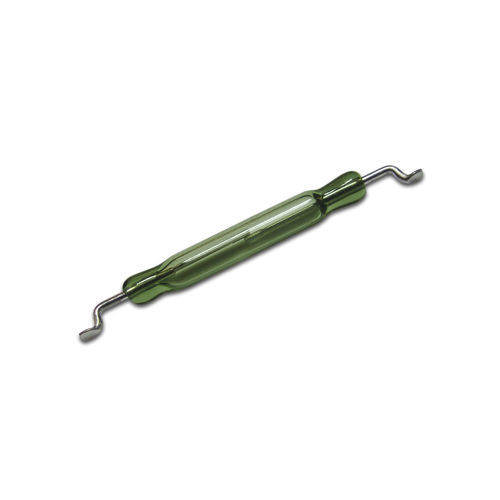

Single-pole reed switch RI-01CSMD
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- single-pole
- Mounting
- SMD
Description
Pico dry-reed switch hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds.
The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or combination of both. The device is intended for use in senors, relays, pulse counters or similar devices.
Features
▪ Ideal for general purpose reed relays and sensors.
▪ Contact layers: ruthenium on gold
▪ Superior glass-to-metal seal and blade alignment
▪ RoHS Compliant
Contact Form: A
Switching Capacity: 10 W/VA Max.
Switching Voltage: 180 Vdc Max.
Switching Current: 250 mA Max.
Glass Length: 0.520in (13.2mm)
Diameter: 0.071in (1.8mm)
