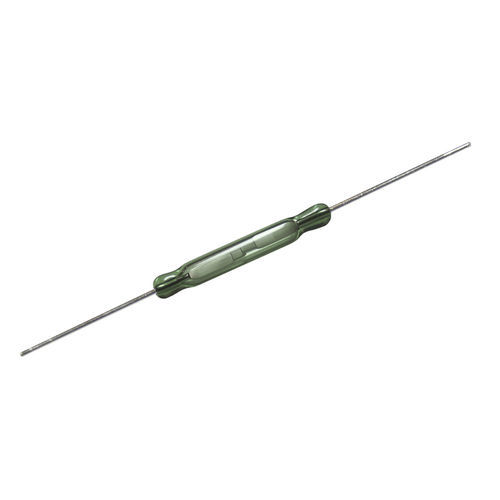

Single-pole reed switch RI-05 series

Close differential pico dry-reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices. Features ▪ Close differential reed switch ▪ Contact layers: ruthenium on gold ▪ Superior glass-to-metal seal and blade alignment ▪ RoHS Compliant AT-Customization / Preformed Leads Besides the standard models, customized products can also be supplied offering the following options: • Operate and release ranges to customer specification • Cropped and/or preformed leads Coils All characteristics are measured using the Philips Standard Coil. For definitions of the Philips Standard Coil, refer to “Application Notes” in the Reed Switch Technical & Application Information Section of this catalog. Life expectancy and reliability The life expectancy data given below are valid for a coil energized at 1.5 times the published maximum operate value for each type in the RI-05 series. Mechanical Data Contact arrangement is normally open; lead finish is tinned; net mass is approximately 100mg; and can be mounted in any position. Contact Form: A Switching Capacity: 10 W/VA Max. Switching Voltage: 200 Vdc Max. Switching Current: 400 mA Max. Glass Length: 0.520in (13.2mm) Diameter: 0.071in (1.8mm)
