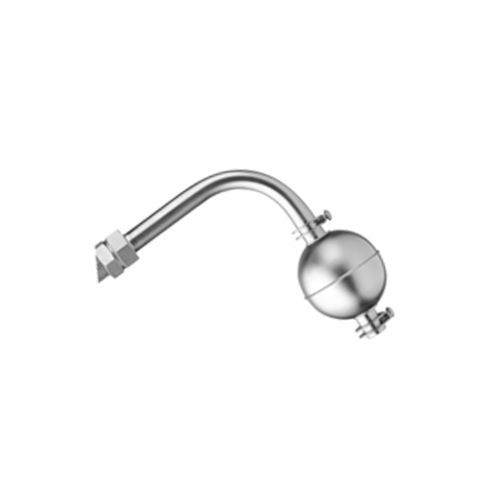

Float level switch HFS30for liquidsstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Material
- stainless steel
- Process temperature
Min.: -10 °C
(14 °F)Max.: 128 °C
(262 °F)
Description
Contact Form: Reversible Float
Switching Voltage: 240Vac/200Vac Max.
Switching Current: 0.5A Max.
Switching Capacity: 50VA Max.
Contact Resistance: 200mOhms Max.
Material: Stainless Steel SUS304
Size: Height: 72.0mm (2.952in)
Width: 60.0mm (2.362in)
Thread: 1/8in PF
Catalogs
Float and level switches
2 Pages
Float Switches
2 Pages
