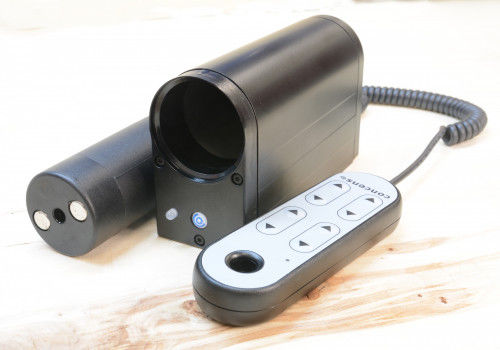

Actuator controller C4

Concens' C4 controller system is a versatile solution for the control of electric in-line actuators and facilitates mobility Our C4 system consists of • Controller • Handset • Battery • Battery charger Features • 4-channel fully programmable controller • 24 VDC NiMH or Li-Ion replaceable battery • Individual or synchronous operation for • drive 2 - 3 - 4 or 2 + 2 actuators • Customised colours and foil design • Wired handset • Adjustable soft start and stop • Adjustable current limit in and out • Adjustable calibration speed and current • Adjustable virtual min/max-positions • Audible and visual status signal Patent • Patented battery system PCT WO 2005/109563 The unique design, strong power supply system and ability to control multiple actuators makes our C4 system ideal for use in a wide range of applications Approved certification for medical use is available for our C4 Our C4 control system is a complete solution for battery-powered electric in-line actuators. Standard systems include IP50 protection and IP65 protection is also available.
