High-temperature accelerometer 330450piezoelectric
Add to favorites
Compare this product
Characteristics
- Technology
- piezoelectric
- Other characteristics
- high-temperature
- Acceleration range
785 m/s²
(2,575 ft/s²)- Frequency
Max.: 10,000 Hz
Min.: 15 Hz
Description

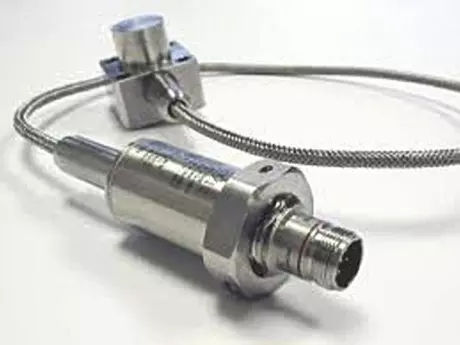

The 330450 High Temperature Acceleration System (HTAS) segregates the sensing element from signal conditioning electronics with the two permanently connected via hardline cable.
Withstands high heat
Sensing head can be installed on surfaces up to 400°C (752°F) with signal conditioning electronics in a cooler location.
Sensitivity
100 mV/g ±5%.
Hazard management
Approved for use in Hazardous Areas.
Catalogs
Orbit DCM
15 Pages
