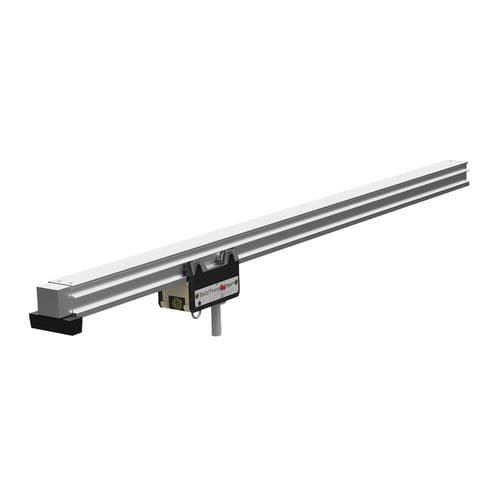

BestaPower A62
The A62 aluminum profile with integral compressed air supply is suitable for use with tapping valves and tapping carriages, as well as for continual energy supply with a laterally suspended energy guiding chain.
Special features
- Ideal media supply over the entire length of the rail profile using tapping valves
- Compressed air supply via tapping valves: no cable / hose loops or chain channel for energy guiding chain
- Optimum compressed air supply even with multiple loads and high air consumption due to integral compressed air pipe
- Minimal planning effort and high degree of system flexibility due to modular design.
- Application-specific solutions adapted to customer needs with energy supply using tapping valves, connection plates, or an energy guiding chain
- Above-average lifetime due to screw connector system – reusability of all components while adapting to changed production sequences
- Flexible workplace layout with equipment carriers / tool transporters with energy supply
- Reliable, accurate guiding with extruded aluminum profile
- Reduced energy costs using optimized tapping valve system
Main applications
- Long production and assembly lines in the automotive industry, utility vehicle construction and agricultural technology
Standard application data
- Maximum intrinsic weight of rails [kg/m]: 2,63
- Maximum suspension distance [m]: 3
- Maximum point load [kg]: 80 at 2 m suspension distance
- Maximum segment load [kg/m]: 80 at 2 m suspension distance
- Maximum travel speed [m/min] manual pushing
