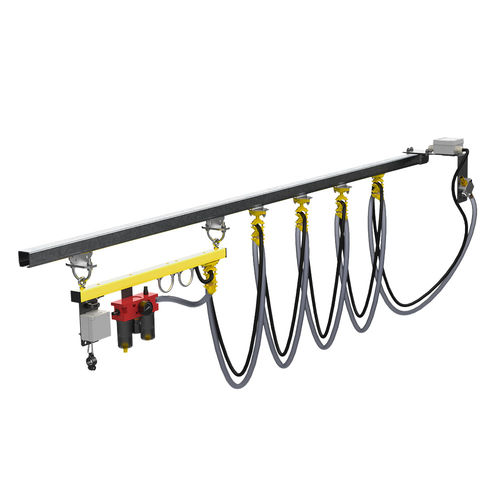

Compressed air delivery system BestaPower C40

for industrial applicationsmobile

BestaPower C40 The BestaPower C40 energy supply system provides mobile consumers with a continuous supply of compressed air, electrical energy, and data through an energy guiding chain or festoon system. The modular assembly and flexible attachment options allow for simple and quick installation. Special features - Reliable supply, thanks to sturdy slide carriers - Easy movement, thanks to plastic rollers - Simple installation, using variable brackets - Gentle guiding of hoses and lines - Flexible system lengths, with simple festoon system - No cable loops with energy guiding chain - Can be installed on existing C rails Main applications - Installation workplaces - Workbenches - Assembly lines Standard application data - Suspension distance max. [m]: 2 - Point load max. [kg]: 125 - Section load max. [kg/m] 200 - Workstation length max. [m]: 20 - Working pressure max. [bar]: 10 - Interfaces Feed through terminal and hose ends - Equipment carrier: Steel and/ or Aluminum - Working conditions Indoors [°C]: +10 up to +60
