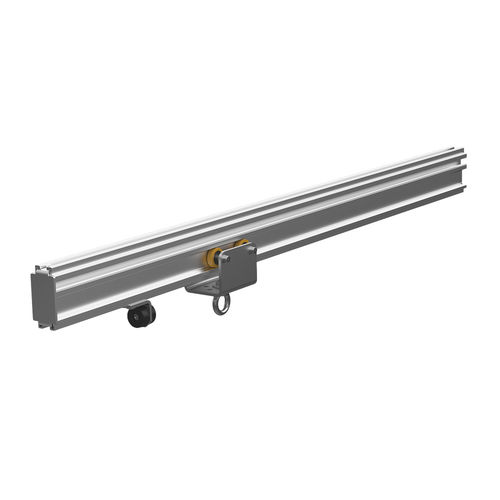

Compressed air delivery system Bestapower C75

for industrial applications

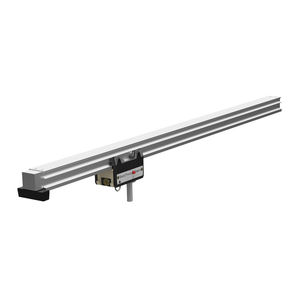

BestaPower C75 A compact aluminum profile C75 without integrated air supply, for simple applications. Energy supply using a classical festoon system with hose / cable loops or using a laterally suspended energy guiding chain. Special features - Minimal planning effort and high degree of system flexibility due to modular design - Above-average lifetime due to screw connector system – reusability of all components while adapting to changed production sequences - Reliable guidance using easily rolling ball bearings with polymer bandage - Simple installation using variable brackets - Simple installation of peripheral equipment and power supply thanks to four practical grooves - Minimized downtime and adaptation time; installation of additional scales without stopping operation - Flexible travel distances using a simple festoon system or laterally suspended energy guiding chain - Gentle guiding of hoses and cables, using flexible, multi-level, cable clips Main applications - Assembly workplaces - Short assembly lines Standard application data - Intrinsic weight of rails: [kg/m]: 1,82 - Maximum suspension distance [m]: 3 - Maximum point load [kg]: 65 at 2 m suspension interval - Maximum section load [kg/m]: 80 kg at 2 m suspension distance - Maximum travel speed [m/min]: manual pushing - Media supply: festoon system or energy guiding chain - Maximum cycle length with energy guiding chain [m]: 18 - Maximum operating pressure [bar]: 8 - Interfaces: free hose or cable ends - Equipment carrier: galvanized steel - Operating conditions indoors [°C]: +10 to +60
