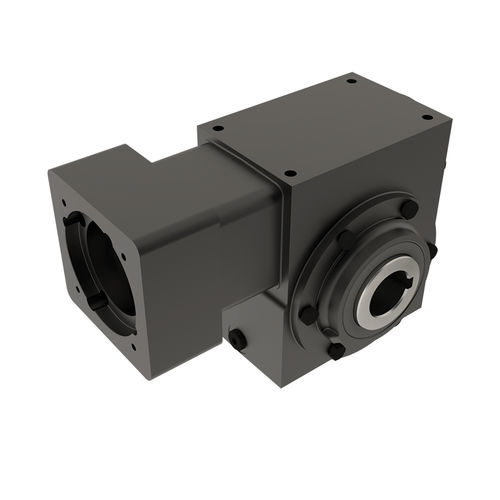

Worm gear reducer RG
right anglehollow-shaftsolid-shaft

worm gear reducer
worm gear reducer
worm gear reducer
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft, solid-shaft
Torque
500 - 1000 Nm
Configuration
compact, flange
Number of stages
single-stage
Performance
precision, low-backlash
Applications
drive, shaft, industrial
Other characteristics
custom, IP65, universal
Gear ratio

50 unit, 60 unit

Description

The Accudrive Series RG gearbox is a compact right angle precision drive providing an economical solution for your general automation applications. Built around the Cone Drive double-enveloping worm technology, the Accudrive Series RG is available in standard and low backlash options. Key Features Sizes (center distance-inch): 1.5, 2.0, 2.5, 3.0 and 3.5 Standard Reduction Stages: Single Interface: Inch or Metric Gear Ratios: 5:1 to 60:1; custom ratios available Ingress Protection: IP65 (servo only) Input Options: Solid shaft, Nema + Servo motor interfaces Output Shaft Options: Solid, Hollow, Shrink Disc Backlash Options: Standard, Low Mounting Options: Universal Mount, Output Flange
