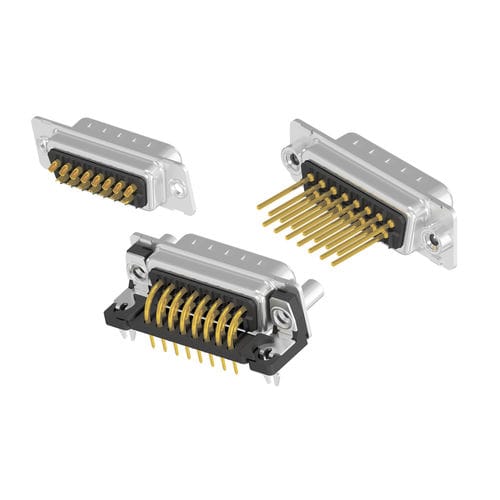

Data connector D-subPCBrectangular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- D-sub, PCB
- Shape
- rectangular
- Connection type
- crimp, through-hole, locking
- Electrical characteristics
- multipole, high-density
- Material
- brass, stainless steel, steel
- Protection class
- IP20
- Other characteristics
- IEC
- Primary current
7.5 A
- Voltage
1,000 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -55 °C
(-67 °F)
Description
In the D-SUB Standard/High Density range CONEC offers the possibility to choose from various numbers of poles, contact and connection types as well as thread designs.
In the D-SUB standard range, the numbers of poles 9, 15, 25, 37 and 50 are available. In addition, high-density versions are available with 15, 26, 44, 62 and 78 poles.
The CONEC Snaplock mounting system is offered as a quick-locking system for common pole numbers.
On the connection side, a choice can be made between through-hole, spacer bolt, threaded insert or plastic/metal angle. Depending on the mounting type and number of poles, the connection types crimp, wire-wrap, solder pin, solder cup and insulation displacement terminal are available.
