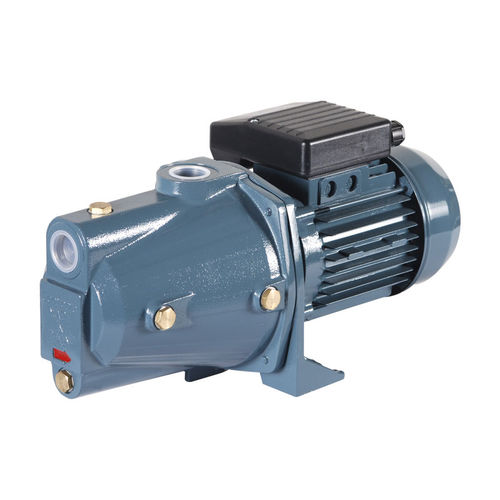

Centrifugal pump NPM / NP series

waterelectricself-priming

THIS MODEL FEATURES EXCELLENT HYDRAULIC PERFORMANCE, A CONSIDERABLY HIGH SUCTION AND OUTPUT PRESSURE CAPACITY AND VERY LOW NOISE WHILE RUNNING. SCOPE OF APPLICATION: This model features excellent hydraulic performance, a considerably high suction and output pressure capacity and very low noise while running. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matters, with temperatures not higher than normal room temperature. PUMP: Monobloc horizontal axis pump with bronze impeller (Noryl impeller is available on request), pump body and base support made of G20 cast iron, venturi tube made of Noryl with 20% glass fibre, AISI 416 stainless steel shaft and mechanical seal made of ceramic/graphite. MOTOR: Monobloc horizontal axis pump with bronze impeller (Noryl impeller is available on request), pump body and base support made of G20 cast iron, venturi tube made of Noryl with 20% glass fibre, AISI 416 stainless steel shaft and mechanical seal made of ceramic/graphite. TENSION: NPM: 230-240 V. 50 Hz; NP: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request. APPLICATIONS: Domestic, Irrigation, Fountains
