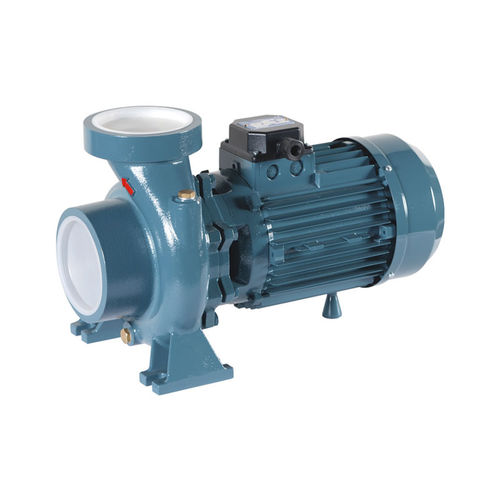

Water pump SAM / SA series
electricself-primingimpeller

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Priming
self-priming
Technology
impeller
Mobility
stationary
Domain
industrial, agriculture
Applications
cooling, irrigation
Material
stainless steel, cast iron, ceramic
Voltage
400 V, 230 V, 240 V
Other characteristics
mechanical, standard, close-coupled, seal
Flow

Max.: 90 m³/h
(3,178.32 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 23 m
(75'05" )

Min.: 1.5 m
(4'11" )

Power

Max.: 4 kW
(5.44 hp)

Min.: 1.1 kW
(1.5 hp)

Fluid temperature

80 °C
(176 °F)

Length

367 mm, 370 mm, 466 mm
(14 in, 15 in, 18 in)

Width

180 mm, 220 mm, 237 mm, 244 mm
(7.09 in, 8.66 in, 9.33 in, 9.61 in)

Height

285 mm, 290 mm, 291 mm, 296 mm
(11.22 in, 11.42 in, 11.46 in, 11.65 in)

Weight

Min.: 22.1 kg
(48.72 lb)

Max.: 39 kg
(85.98 lb)

Description

CLOSED IMPELLER PUMPS WITH AXIAL INTAKE AND UPWARD-FACING RADIAL DELIVERY. THESE PUMPS FEATURE VERY HIGH FLOW RATE VALUES AND MEDIUM-LOW DISCHARGE HEAD AND ARE PARTICULARLY SUITED FOR USE IN MOBILE IRRIGATION SYSTEMS, CHANNELS AND STORAGE TANK SYSTEMS. SCOPE OF APPLICATION: Closed impeller pumps with axial intake and upward-facing radial delivery. These pumps feature very high flow rate values and medium-low discharge head and are particularly suited for use in mobile irrigation systems, channels and storage tank systems. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matter, with temperature not higher than 80°C. PUMP: Horizontal axis pump with cast iron impeller, pump body and base support made of G20 cast iron, AISI 416 stainless steel shaft and mechanical seal made of ceramic/ graphite. MOTOR: Electric, closed-type with external cooling fan, IP 44 safety class. F insulation. The standard versions of single-phase motors are fitted with termostat-controlled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps. TENSION: SAM: 230-240 V. 50 Hz; SA: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request. APPLICATIONS: Irrigation, Agriculture, Industry
