COM Express computer-on-module conga-B7XIIntel® XeonUSB 2.0USB 3.0
Add to favorites
Compare this product
Characteristics
- Form factor
- COM Express
- Processor
- Intel® Xeon
- Ports
- USB 2.0, USB 3.0, SATA, PCI Express
- Operating system
- Linux, Yocto, Android, Windows 10
- Other characteristics
- embedded
Description

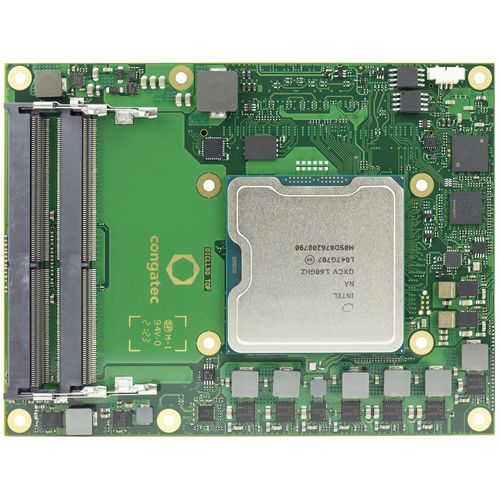

COM Express Type 7 Basic module based on Intel® Xeon® D processor series (code name "Ice Lake")
Industrial Use Condition with extended Temperature options
32 PCIe Express lanes
AI Capabilities with Intel® DL boost
Real Time Capable Platform
Supporting up to 128 GB DDR4 2666MT/s Memory
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
embedded BIOS Features
AMI Aptio UEFI
64Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
Flash Update
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 5.0 with battery support
