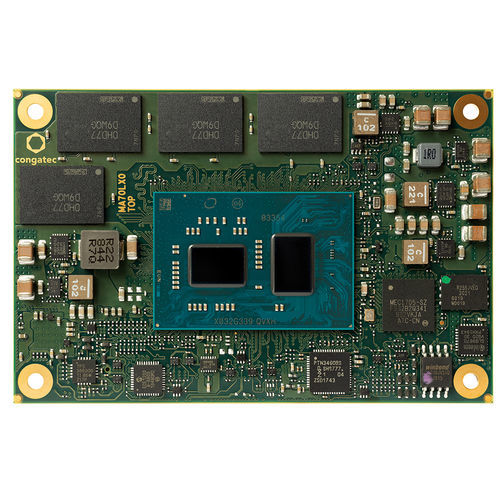

COM Express Mini computer-on-module conga-MA7

Intel® Atom® x6425EIntel® Atom™ x6211EIntel® Celeron®

COM Express® Mini Type 10 module based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series High performance Intel® UHD Graphics (Gen11) Options for Industrial Temperature Range -40°C to 85°C Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability Up to 4.267 MT/s onboard Memory Support with Inband ECC congatec Board Controller Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control embedded BIOS Features AMI Aptio UEFI 32 MByte serial SPI firmware flash OEM Logo OEM CMOS Defaults LCD Control Display Auto Detection Backlight Control Flash Update Power Management ACPI 5 .0 compliant, Smart Battery Management Temperature Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +80°C Industrial: Operating Temperature: -40 to +85°C | Storage Temperature: -40 to +85°C
