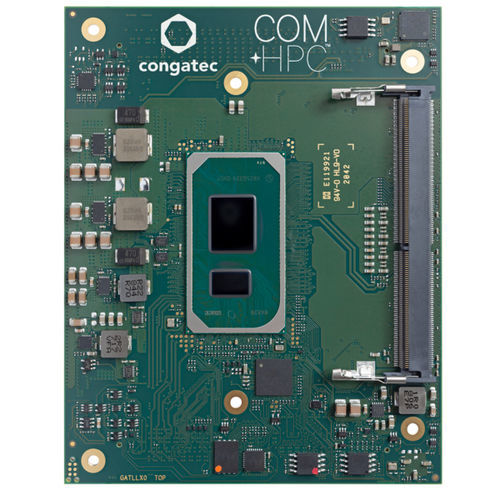

COM Express computer-on-module conga-HPC/cTLU​

Intel® Celeron® 6305E1th Gen Intel® Tiger Lake-UP3 i3-1115G4EIntel® Core™ i5-1145G7E

COM-HPC Client Size A high performance module based on 11th Gen Intel® Core™ processor series (code name "Tiger Lake") COM HPC Client Size A PCI Express Gen 4 ​ Embedded/Industrial use condition Extended temperature options available Integrated high performance Xe (Gen 12) graphics with 96 EU AI/DL Instruction Sets including VNNI congatec Board Controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection Security Trusted Platform Module (TPM 2.0) Power Management ACPI 5.0 with battery support Temperature Industrial: Operating: -40 to +85°C | Storage: -40 to +85°C Commercial: Operating: 0 to +60°C | Storage: -40 to +85°C Humidity Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. Video Interfaces 3x DDI/DP++ | 1x eDP
