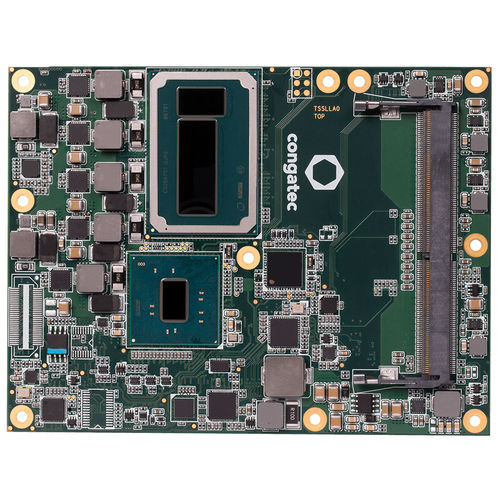

COM Express computer-on-module conga-TS170

Intel® Xeon E3Intel® Core i76th generation Intel® Core™

COM Express Type 6 Basic module based on 6th Generation Intel® Core™ processor family 6th Generation Intel® Core™ processor Intel® Gen9 HD Graphics with HEVC (H.265) support ECC memory support for Xeon and i3 version Up to 32GByte dual channel DDR4 memory XEON processors for data center applications congatec Board Controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control embedded BIOS Features 8/16 MByte serial SPI firmware flash AMI AptioV® UEFI 2.x firmware Security The conga-TS170 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM 1.2 / 2.0) Power Management ACPI 4.0 with battery support Temperature Standard Operating: 0 to +60°CStorage: -20 to +80°C Humidity Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
