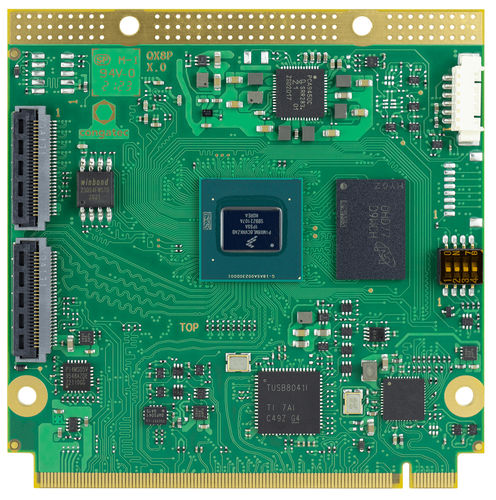

Qseven® computer-on-module conga-QMX8-Plus

NXPi.MXHDMI

Qseven module based on NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU Enhanced AI, Machine Learning and Vision capabilities featuring NPU and integrated camera ISP’s Ultra low power architecture with 2-5W Extended longevity up to 15 years Temperature range up to -40°C .. +85°C Security Cryptographic Acceleration and Assurance Module (CAAM) | Resource Domain Controller | ARM® TrustZone® High Assurance Boot support | SHE, Encryption Engine AES-128, AES-256, 3DES, RC4, RSA4096, TRNG SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 40 Temperature Operating Temperature Range: 0 to +60°C commercial grade | -40 to +85°C industrial grade Storage Temperature Range: -40 to +85°C Humidity Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. Video Interfaces 1 x dual channel 24-bit LVDS | 1x HDMI 2.0a | 1x MIPI-DSI 4-lane shared with second LVDS channel 2 x MIPI-CSI 4-lane onboard connectors | 2x integrated Image Signal Processor (ISP) for cameras with up to 12 MP resolution
