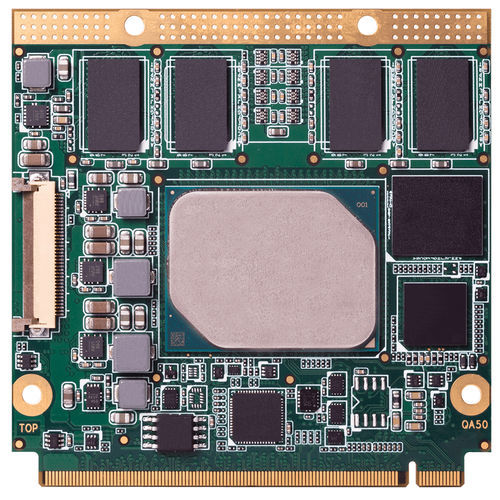

Qseven® computer-on-module conga-QA5

Intel® Atom x7-E3950Intel® Atom® x5-E3940Intel® Celeron® N3350

Highest performance Qseven module with 5th Generation Intel® Atom™ / Celeron® / Pentium® processors Intel® Atom™ Quad Core on Qseven Intel 9th generation (Gen 9) LP graphics Up to 4k resolution (4096x2160@60Hz) 4K Codec Decode & Encode for HEVC, H.264, VP8 Fast I/Os SATA3, USB 3.0 and PCIe 2.0 congatec Board Controller Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control embedded BIOS Features AMI Aptio® 2.X (UEFI) firmware 8 MByte serial SPI firmware flash OEM Logo OEM CMOS Defaults LCD Control Display Auto Detection Backlight Control Flash Update Power Management ACPI 5 .0 compliant, Smart Battery Management Temperature Extended Commercial : Operating: 0 to +60°C Storage: -20 to +70°C Industrial: Operating: -40 to +85°C Storage: -40 to +85°C
