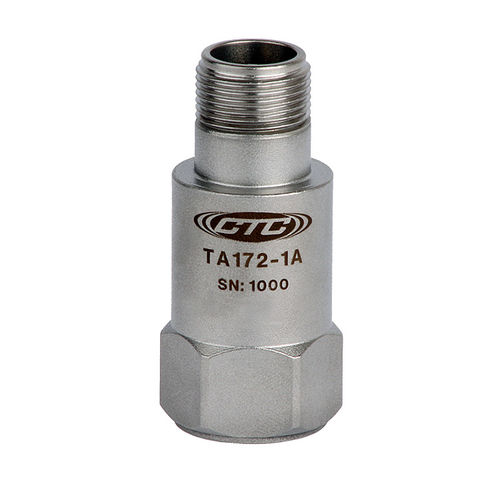

Thermocouple TA172
threadedstainless steel

Thermocouple - TA172 - Connection Technology Center Inc. - threaded / stainless steel
Thermocouple - TA172 - Connection Technology Center Inc. - threaded / stainless steel
Add to favorites
Compare this product


Characteristics

Technology
thermocouple
Mounting
threaded
Other characteristics
stainless steel
Temperature

Max.: 121 °C
(250 °F)

Min.: -40 °C
(-40 °F)

Description

Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 100 mV/g, 10 mV/K Sensitivity: 100 mV/g Frequency Response (±3dB): 30-900,000 CPM Dynamic Range: ± 50 g, peak Power Requirements Voltage Source: 18-30 VDC Temperature Range: -40 to 250°F (-40 to 121°C) Case Material: 316L Stainless Steel Connector: 3 Pin MIL-C-5015 Max Temp: 250°F (121°C)
