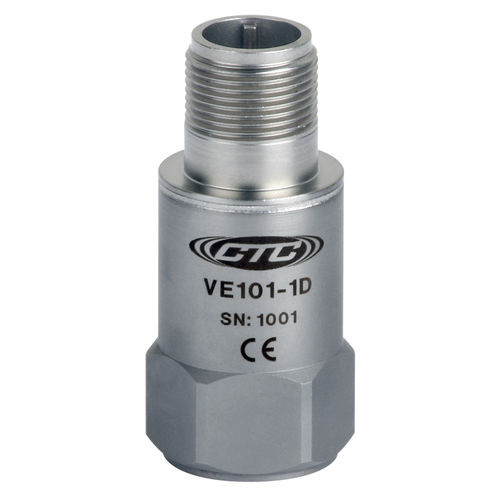

Piezoelectric velocity sensor VE101
Add to favorites
Compare this product
Characteristics
- Technology
- piezoelectric
Description
Piezo Velocity Sensor, Top Exit Connector / Cable, 100 mV/in/sec
Sensitivity: 100 mV/in/sec
Frequency Response (±3dB): 90-720,000 CPM
Dynamic Range: ± 50 in/sec. pk
Power Requirements Voltage Source: 18-30 VDC
Temperature Range: -58 to 250°F
(-50 to 121°C)
Case Material: 316L Stainless Steel
Connector: 2 Pin MIL-C-5015
Max Temp: 250°F (121°C)
Catalogs
No catalogs are available for this product.
See all of Connection Technology Center Inc.‘s catalogsOther Connection Technology Center Inc. products
Piezo Velocity Sensors
