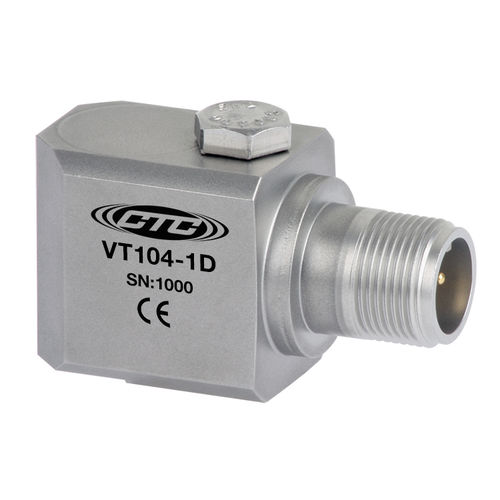

Piezoelectric velocity sensor VT104
Add to favorites
Compare this product
Characteristics
- Technology
- piezoelectric
Description
Dual Output Piezo Velocity Sensor, 100 mV/in/sec, with Temperature Output, 10 mV/°C, Side Exit Connector
Sensitivity: 100 mV/in/sec
Frequency Response (±3dB): 90-420,000 CPM
Dynamic Range: ± 50 in/sec. pk
Power Requirements Voltage Source: 18-30 VDC
Temperature Range: -58 to 250°F
(-50 to 121°C)
Case Material: 316L Stainless Steel
Connector: 3 Pin MIL-C-5015
Max Temp: 250°F (121°C)
VIDEO
Catalogs
VT104 Series
1 Pages
