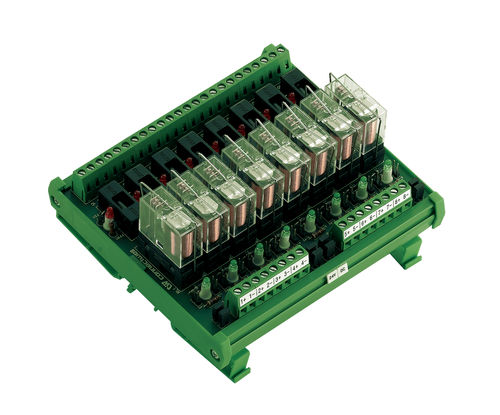

Voltage protection relay 230 V, max. 10 A | IMREF2SS seriesDIN railpanel-mount
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- voltage
- Mounting
- DIN rail, panel-mount
- Tripping current
Min.: 0 A
Max.: 10 A
- Trigger voltage
230 V
Description
Relay Module 1CO 12VDC (SPDT) With Input Fuse Protection
-Replaceable fuses with simple to operate Horizontal fuse holders
-Fast Blow & Slow Blow fuses available as standard
-Fuse ratings from 0.1 A to 6.3 A available.
-Variety of Operating Voltages.
-Switching Current upto 10 A at 230 VAC (or 30 VDC).
-Low Coil Drive Current(4.7 mA to 100 mA)
-Easy to replace pluggable relays.
-Possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
-Relay Coil Protection by means of a Freewheeling Diode.
-Green LED indication to denote relay actuation.
-Red LED indication to denote fuse fail indication.
-Mounting Options available: DIN Rail mounting & Panel mounting.
