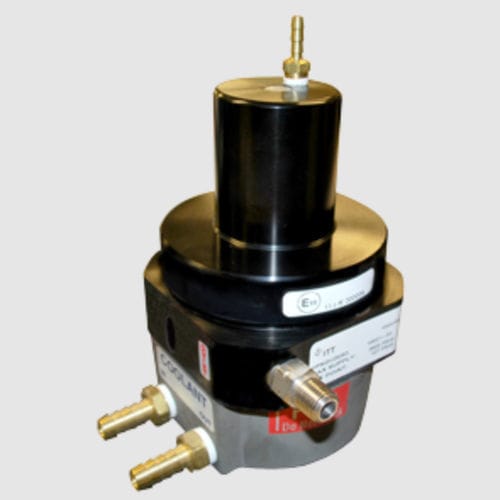

Gas pressure regulator HPNGV2

for fuelmembranesingle-stage

The ITT Conoflow HPNGV Series Gas Regulator has earned a reputation for world class reliability and performance. Over a decade of service in the most demanding applications has proven the HPNGV Gas Regulator is the choice for OEM vehicle, engine and fuel systems. The HPNGV Gas Regulator is proven to be a safe and reliable pressure control element. Meets the requirements of ISO 15500 and NGV 3.1 Specifications Regulated Media: Compressed natural gas Inlet Pressure: 250 to 3600 psig (1.72 MPa to 24.84 MPa) to meet all performance specifications. Nominal Output Pressure Range: Factory preset 45-150 PSIG (0.31-1.03 MPa) Set Point. The typical range of delivery pressure is +15 / -10 psi from specified setting throughout the range of inlet pressure, temperature and flow. Gas Flow Rate: Up to 165 lbs/hr (0-82 kg/hr) (flow varies by application, consult the factory for data) Internal Filtration: 40 Micron Corrosion Proof Sintered Element Leakage (Ambient and Valve): Bubble Tight Moisture Tolerance: To 7 lbs Water per Million Standard Cubic Ft. Temperature Range (Ambient, Inlet and Coolant): -40ºF to +257ºF (-40ºC to 125ºC) Vehicle Applications: Normally aspirated or Turbocharged EFI Spark Ignition Engines Gas Inlet: SAE-6 (9/16-18 Thread) per SAE Specification J1926 Gas Outlet: SAE-8 (3/4-16 Thread) per SAE Specification J1926 Standard Coolant: 3/8” Hose Connection per SAE Specification J962 Mounting Threads: M8 x 1.25 x 18mm, 2 Places 45.7mm Apart Suitable for 20mm Bolts Weight: HPNGV2 Regulator 4.03 lb. (1.88 kg); HPNGV2 Regulator with sensor 4.25 lb. (1.93 kg) Approvals: ISO 15500, NGV3.1 U.S. Patents: 5,890,512 and 5,443,083
