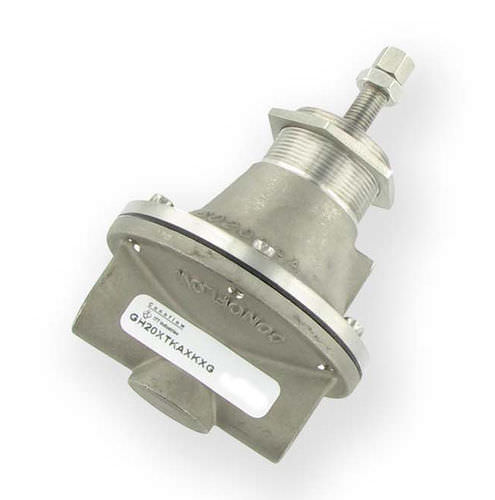

Regulator GH series

Conoflow's Service (GH20 Series) Regulators are rugged units with flow capacities and performance characteristics which allow the units to operate in both instrument and industrial applications. Buna "N" diaphragms are standard in the aluminum units. Specifications Maximum Supply Pressure: 300 PSI (1379 kPa) Regulated Output Pressure Ranges: 0-25, 60 and 125 PSI (0-172, 414, and 862 kPa) Connections: 1/4" NPT (No Gauge Ports) Sensitivity: 0.05" PSI (0.345 kPa) Supply Pressure Effect: 0.12 PSI (0.827 kPa) for 25 PSI (172 kPa) change in supply pressure Ambient Temperature Range: -20ºF to +150ºF (-29ºC to +66ºC) (w/Buna "N" diaphragm) Approximate Shipping Weight: 1.75 lbs. (0.79 Kg)
