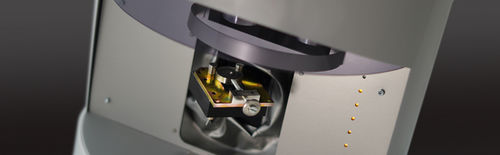

Diameter measurement system CU4

opticalfor small partscontrol

Quality control of small objects The CU4 is an easy to use, yet highly accurate and fast diameter measurement system. Conoptica’s unique model-based measurement algorithm offers a diameter measurement that is very robust against dirt and other disturbances in the drawing die. Software Drawing Die Diameter & Ovality This module is a simplified version of the Drawing Die Profile. It will only provide diameter and ovality measurements, and is intended for systems without rotating axis. Shaped Die Cross-section This module is a simplified version of the Shaped Die Profile. It will only provide 2D measurements, and is intended for systems without dual rotating axis. Wire, Pin & Needle Fast and simple 2D measurement of wire samples, pins, needle angles etc. Useful for verification of grinding needle angles, sampling drawn wire and more. X-Cut Section For special applications, Conoptica offers the possibility to inspect cross-sections of various products, like shaped wire, rings, machined parts etc. This module is special in that it requires a special objective to be installed in the Conoptica measurement system. This objective is of type ‘Brightfield’, as opposed to the normal objectives used in the CU11/CU6/CU4 systems. (The CU20 uses Brightfield technology only.) Specifications Diameter Range Minimum diameter: 0.020 mm (0.00079 in) Maximum diameter: 7.000 mm (0.27559 in) Max Casing Size Diameter: 55 mm (2.16 in) Height: 30 mm (1.18 in) Weight: 0.300 kg
