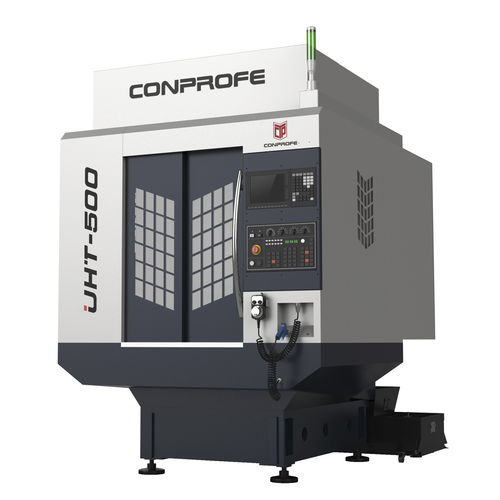

3-axis CNC machining center UHT-500
verticalwith fixed portalwith moving table

3-axis CNC machining center - UHT-500 - Conprofe - vertical / with fixed portal / with moving table
3-axis CNC machining center - UHT-500 - Conprofe - vertical / with fixed portal / with moving table
3-axis CNC machining center - UHT-500 - Conprofe - vertical / with fixed portal / with moving table - image - 2
3-axis CNC machining center - UHT-500 - Conprofe - vertical / with fixed portal / with moving table - image - 3
Add to favorites
Compare this product

Go to the Conprofe website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with fixed portal, with moving table, column type
Machined material
for aluminum, for steel, for copper, for cast iron, for non-ferrous metals, for stainless steel, acrylic
Spindle mount
BT 30
Associated functions
milling, tapping, drilling
Applications
for the automobile industry, for the aeronautical industry, for the mold industry, for medical applications, for small parts production, for titanium, for small workpieces, for the steel industry, for the aluminum industry
Other characteristics
high-speed, high-performance, high-precision, high-rigidity, high-productivity
X travel

Max.: 500 mm
(19.69 in)

Y travel

Max.: 400 mm
(15.75 in)

Z travel

Max.: 360 mm
(14.17 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

Max.: 3.7 kW
(5.03 hp)

2.2 kW
(2.99 hp)

Work feed X-axis

Max.: 48,000 mm/min
(31 in/s)

Work feed Y-axis

Max.: 48,000 mm/min
(31 in/s)

Table load capacity

Max.: 250 kg
(551 lb)

Tool weight (max)

Max.: 3 kg
(6.6 lb)

Positioning accuracy

0.006 mm
(0.00024 in)

Repeatability

0.004 mm
(0.00016 in)

Weight

2,300 kg
(5,070.63 lb)

Overall length

1,600 mm
(63 in)

Overall width

2,155 mm
(84.8 in)

Overall height

2,565 mm
(101 in)

Description

High speed, high efficiency Ultrasonic function optional Tool magazine holding capacity can be customized (21/26/30/36pcs of tools) Spindle nose to table distance can be customized(200-560mm/270-630mm/340-700mm) Applications: For machining various types of metal workpieces(aluminum, copper, steel, titanium, cast iron and so on) Applied industries: 3C, aerospace, high-end medical, automobile, new-energy, 5G Standard Configuration: Centralized Automatic Lubrication System Electrical Cabinet Heat Exchanger Coolant System Ethernet Interface Handwheel Controller Blow Gun Bottom Chip Flush System LED Work Light Three-color Alarm Light Safety Interlock Optional Configuration: Automatic Door 4th-/5th-Axis Rotary Table Contact Tool Setter Spindle Chiller Oil-mist Collector High Precision 3D Probe Disc Type Oil Water Separator Add-on Tool Magazine(ATM-14)
