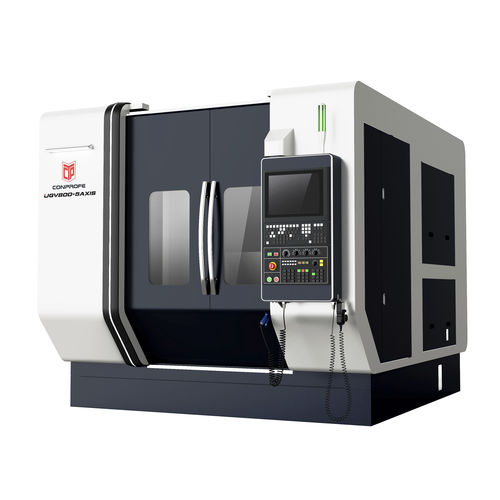

Ultrasonic CNC machining center UGV8005-axisverticalgantry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- gantry, with rotary table, column type
- Machined material
- for copper, for aluminum, for steel, for cast iron, for stainless steel, for non-ferrous metals, for composites, for plastics, for glass, for quartz, for ceramics
- Spindle mount
- HSK A-63
- Number of tool stations
- 24 tools
- Associated functions
- milling, engraving, cutting, drilling
- Applications
- heavy-duty, for the automobile industry, for small workpieces, for large-diameter parts, for aluminum profiles, for heavy loads, optical, for large workpieces, for the aeronautical industry, for titanium, for small parts production, for cast iron, for the steel industry, dental, for heavy-duty machining, for the mold industry, for aeronautics, for molds, for the aluminum industry, for medical applications
- Other characteristics
- high-precision, high-speed, ultrasonic, high-performance, for micro-machining, compact, high-speed, high-rigidity, for production, high-productivity, all-in-one, direct-drive, single-head, high-power, CE, with automatic tool changer
- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
550 mm
(21.65 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 18,000 rpm
(113,097 rad.min-1)- Table rotation (C axis)
360 °
- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Table load capacity
500 kg
(1,102 lb)- Tool weight (max)
6 kg
(13.2 lb)- Positioning accuracy
0.005 mm
(0.0002 in)- Repeatability
0.004 mm
(0.00016 in)- Weight
18,500 kg
(40,785.52 lb)- Overall length
2,588 mm
(101.9 in)- Overall width
3,667 mm
(144.4 in)- Overall height
3,060 mm
(120.5 in)
Description
Siemens 840Dsl simultaneous 5-axis system(RTCP function)
With ultrasonic function, MQL function optional
High speed, high efficiency, high precision
Compact structure, small size
Applications:
For machining hard-brittle materials(such as ceramic, glass, sapphire, quartz, silicon carbide, carbon fiber composite and so on) and metal workpieces(such as aluminum, copper, steel, cast iron and so on)
For machining workpieces with curved and complex structure
Applied industries: 3C, aerospace, high-end medical, automobile, new-energy, 5G
Standard Configuration:
Coolant System
Centralized Automatic Lubrication System
Spindle Chiller
Contact Tool Setter
HEIDENHAIN Linear Encoders
Handwheel Controller
Electrical Cabinet Heat Exchanger
Blow Gun
LED Work Light
Three-color Alarm Light
Safety Interlock
5-axis Simultaneous Machining (with RTCP Function)
Anti-collision System
Optional Configuration:
High Precision 3D Probe
Laser Tool Setter
Ultrasonic Amplitude Measuring Instrument
Permanent Magnet Synchronous Electrical Spindle
Oil-mist Collector
Automatic Door
