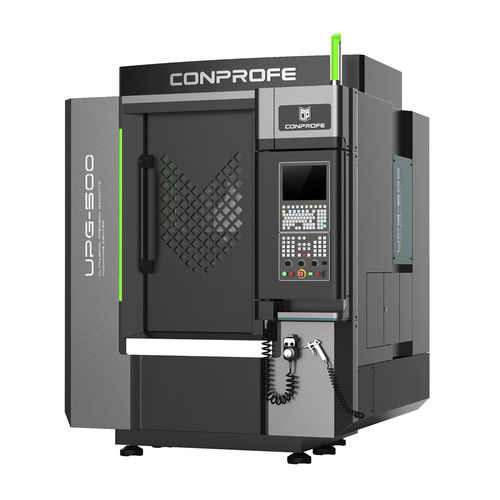

Graphite machining CNC machining center UPG-5003-axisverticalHSK-E40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40, HSK-E32
- Number of tool stations
- 12 tools, 14 tools
- Associated functions
- milling, engraving, cutting, drilling
- Applications
- for the automobile industry, for the aeronautical industry, optical, for graphite machining, for graphite
- Other characteristics
- high-speed, high-performance, compact, high-productivity, high-precision, high-speed, high-rigidity, ultrasonic, with control panel, medium-sized, with automatic tool changer
- X travel
500 mm
(19.69 in)- Y travel
400 mm
(15.75 in)- Z travel
230 mm
(9.06 in)- Rotational speed
30,000 rpm, 40,000 rpm
(188,496 rad.min-1, 251,327 rad.min-1)Min.: 0 rpm
(0 rad.min-1)Max.: 40,000 rpm
(251,327 rad.min-1)- Power
7.5 kW, 8 kW
(10.2 hp, 10.88 hp)- Work feed X-axis
15,000 mm/min
(10 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Table load capacity
200 kg
(441 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.003 mm
(0.00012 in)- Repeatability
0.002 mm
(0.00008 in)- Weight
3,500 kg
(7,716.18 lb)- Overall length
1,770 mm
(69.7 in)- Overall width
1,890 mm
(74.4 in)- Overall height
2,275 mm
(89.6 in)
Description
UPG-500 Conprofe Ultrasonic Precision Graphite Machining Center
Characteristics:
Ultrasonic function optional, with high-level dust protection device, perfect for processing graphite material
Applications:
Professionally for processing components in various industries made of graphite materials
Standard Configurations:
Centralized Automatic Lubrication System
Handwheel Controller
Electrical Cabinet Heat Exchanger
Three-color Alarm Light
High Precision Linear Scale
Spindle Chiller
Blow Gun
LED Work Light
Safety Interlock
Optional Configurations:
High Precision 3D Probe
Vacuum Cleaner
4-/5-axis Rotary Table
Automatic Door
Contact Tool Setter
Laser Tool Setter
Extended Tool Magazine (ETM-14)
