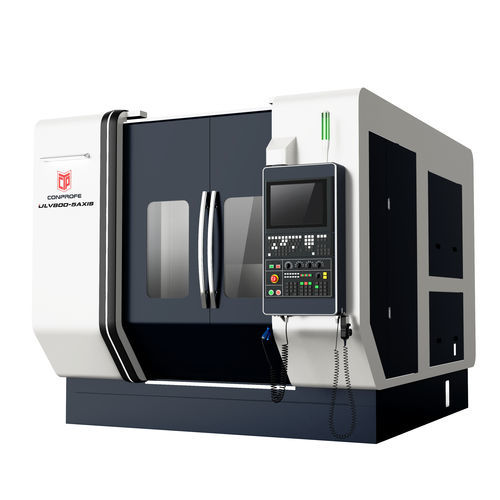

5-axis CNC machining center ULV800verticalfor compositesfor plastics
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for plastics, for glass, for ceramics, for quartz, for hard and brittle materials
- Spindle mount
- HSK A-63
- Number of tool stations
- 24 tools
- Associated functions
- cutting, drilling
- Applications
- for the automobile industry, for the aeronautical industry, for medical applications, for aeronautics, for titanium, for aluminum profiles
- Other characteristics
- high-speed, high-performance, high-productivity, high-precision
- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
550 mm
(21.65 in)- Rotational speed
18,000 rpm
(113,097 rad.min-1)- Workpiece max height
800 mm
(31 in)- Table rotation (C axis)
360 °
- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
500 kg
(1,102 lb)- Tool weight (max)
6 kg
(13.2 lb)- Positioning accuracy
0.006 mm
(0.00024 in)- Repeatability
0.005 mm
(0.0002 in)- Weight
18,500 kg
(40,785.52 lb)- Overall length
2,588 mm
(101.9 in)- Overall width
3,667 mm
(144.4 in)- Overall height
3,060 mm
(120.5 in)
Description
Standard Configurations
Coolant System
Centralized Automatic Lubrication System
Spindle Chiller
Contact Tool Setter
HEIDENHAIN Linear Encoders
Electric Spindle
Handwheel Controller
Blow Gun
Electrical Cabinet Heat Exchanger
LED Work Light
Three-color Alarm Light
Safety Interlock
5-axis Simultaneous Machining System (with RTCP Function)
Anti-collision System
Optional Configurations
High Precision 3D Probe
Oil-mist Collector
Automatic Door
Laser Tool Setter
Auto Chip Conveyor
40T Chain-type Tool Magazine
