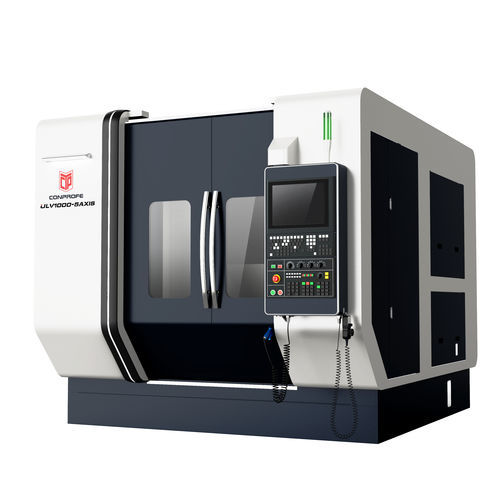

5-axis CNC machining center ULV1000 verticalfor compositesfor plastics
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for plastics, for glass, for ceramics, for quartz, for hard and brittle materials
- Spindle mount
- HSK A-63
- Number of tool stations
- 40 tools
- Associated functions
- cutting, drilling
- Applications
- for the automobile industry, for the aeronautical industry, for medical applications, for aeronautics, for aluminum plates
- Other characteristics
- high-speed, high-performance, high-precision, ultrasonic, with automatic tool changer
- X travel
1,100 mm
(43.31 in)- Y travel
1,100 mm
(43.31 in)- Z travel
700 mm
(27.56 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Workpiece max height
1,100 mm
(43 in)- Table rotation (C axis)
360 °
- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
1,000 kg
(2,205 lb)- Tool weight (max)
25 kg
(55.1 lb)- Positioning accuracy
0.007 mm
(0.00028 in)- Repeatability
0.006 mm
(0.00024 in)- Weight
25,000 kg
(55,115.57 lb)- Overall length
3,200 mm
(126 in)- Overall width
4,200 mm
(165.4 in)- Overall height
4,000 mm
(157.5 in)
Description
Standard Configurations
Coolant System
Centralized Automatic Lubrication System
Spindle Chiller
Contact Tool Setter
HEIDENHAIN Linear Encoders
Electric Spindle
Handwheel Controller
Blow Gun
Electrical Cabinet Heat Exchanger
LED Work Light
Three-color Alarm Light
Safety Interlock
5-axis Simultaneous Machining System (with RTCP Function)
Anti-collision System
Optional Configurations
High Precision 3D Probe
Oil-mist Collector
Automatic Door
Laser Tool Setter
Auto Chip Conveyor
50T Chain-type Tool Magazine
