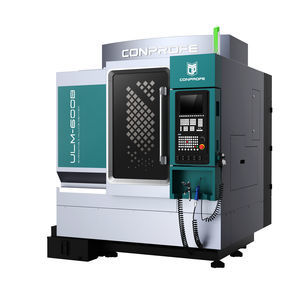

3-axis CNC milling center ULM-600A

vertical2-spindle15 tools

Intelligent Ultrasonic machining system developed by Conprofe to tackle the challenges in machining hard-to-cut materials Supercritical Carbon Dioxide (ScCO2) Cryogenic Through-Spindle Cooling System and MQL Cooling System available for clean machining Two kinds of screw guide protection available to meet machining needs of hard-brittle materials and metal materials Single tool magazine / extended tool magazine / 40T chain-type tool magazine available High-precision machining with positioning accuracy of 3μm and repeatability of 2μm With loading and unloading at front door and operation at side door, the operator position is close to the machining area for easy operation Equipped with auger chip conveyor for smooth and thorough chip removal. Case sharing: 1.Single Crystal Silicon Showhead Drilling (Depth-to-Diameter 51:1) Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials Features Conprofe independently-developed Ultrasonic Machining System to solve issues in machining hard-to-cut materials Optional Supercritical CO₂ or MQL Cooling System to realize clean machining Two options for screw guides to meet requirements on machining hard-brittle materials and metal Front-door loading & unloading and side-door operation available with facilitative operating position High-precision machining with up to 3μm of positioning accuracy and 2μm of repeatability Single/double/T40 chain-type tool magazine available With chip auger for smooth and thorough chip removal
