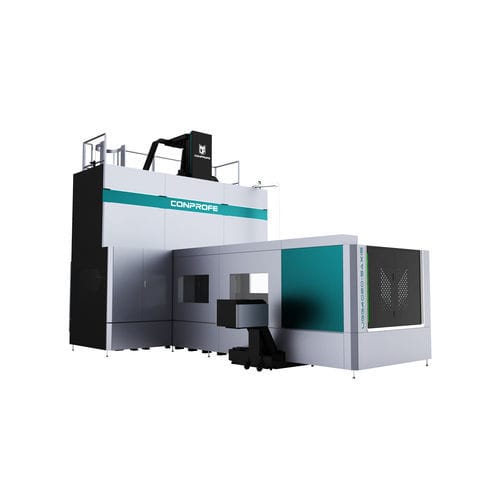

Gantry CNC machining center UGG-4020

5-axisverticalHSK-A 100

Features: 1.Intelligent Ultrasonic Machining System developed by Conprofe to tackle the challenges in machining hard-to-cut materials 2.Supercritical Carbon Dioxide (ScCO2) Cryogenic Cooling System and MQL Cooling System available for clean machining 3.Four structures are available (movable beam / movable beam moving column / fixed beam / fixed beam movable column) 4.X-axis travel range of 2~26m and Y-axis travel range of 1.6~9m for medium and large parts machining 5.Z-axis travel range of 0.8~2m with large space for large workpiece machining range 6.World-Class A/C swivel heads 7.Fully enclosed protection against dust and explosion available 8.Applicable to honeycomb materials, carbon-fiber reinforced plastics and non-ferrous metals Case Sharing： 1.Nomex Honeycomb Material Machining Machining Effect: burrs reduced by 90%; Less force on the surface, no collapse 2.CFRP Aircraft Wing Plate Machining Machining Effect: machining efficiency up by 50% and burrs reduced by 40%
