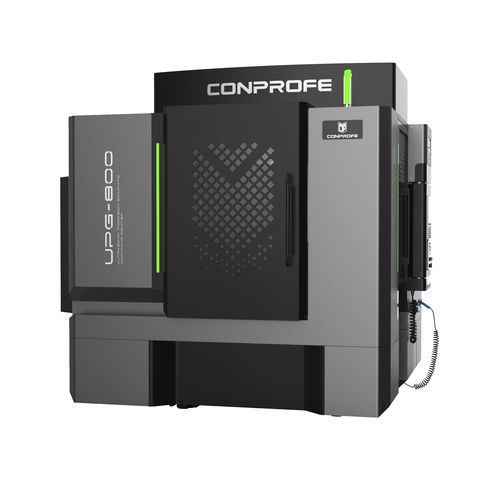

5-axis CNC machining center UGP-800

verticalHSK A-6340 tools

Features: 1. Conprofe-developed ultrasonic spindles with a max. speed of 40,000rpm adopted to reduce cutting force, thus reducing sub-surface damage (SSD) on hard-brittle materials 2. Superior performance in vibration absorption, accuracy retention, dynamic characteristics and thermal stability due to its high-rigidity structure and symmetrical gantry structure design 3. Multi-layered protection and labyrinth design for guide way, positive pressure sealing and special dust collection design 4. Work well in both dry and wet cutting 5. High Precision Linear Encoder configurable to achieve full closed loop control and repeatability accuracy of 2µm 6. SIEMENS 828D system available Application: Ideally suited for high-speed and high-precision machining of graphite, unsintered ceramics, hard-brittle materials (sapphite, glass, etc.), metal materials, etc.
