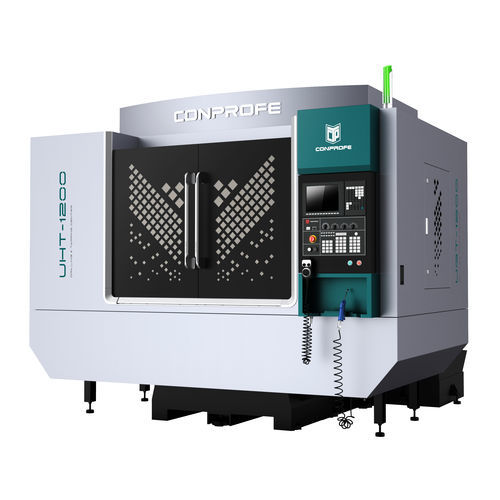

3-axis CNC machining center UHT-1200verticalfor compositesfor plastics
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for plastics, for glass, for ceramics, for quartz, for hard and brittle materials
- Spindle mount
- BT 30
- Number of tool stations
- 21 tools
- Associated functions
- milling, tapping, drilling
- Applications
- for aluminum profiles, for the automobile industry, for medical applications, for titanium, for aluminum plates, for small parts production, for the aluminum industry, for cast iron, dental, for the steel industry
- Other characteristics
- high-speed, high-performance, high-productivity
- X travel
1,200 mm
(47.24 in)- Y travel
650 mm
(25.59 in)- Z travel
370 mm
(14.57 in)- Rotational speed
24,000 rpm, 30,000 rpm
(150,796 rad.min-1, 188,496 rad.min-1)- Power
15 kVA
(20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
400 kg
(882 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.005 mm
(0.0002 in)- Weight
60,000 kg
(132,277.36 lb)- Overall length
2,930 mm
(115.4 in)- Overall width
2,980 mm
(117.3 in)- Overall height
2,700 mm
(106.3 in)
Description
Features
1. Global pioneering drilling and tapping center integrated with both ultrasonic
machining systen and MQL system for green machining with no need for coolant
2. Coolant-through BBT-30 Ultrasonic Spindle with max speed of 30,000rpm available
3. Various tool magazine capacity options: 21T/26T/30T/36T/30T+14T
4. Positioning accuracy of 5µm and repeatability accuracy of 3µm
5. Various distance options from Spindle Nose to Table: 200-560mm (standard), 270-630/340-700mm (optional)
6. 4-/5-axis Rotary Table available
Application:
Ideally suited for drilling, tapping and milling small plates, discs and housings for consumable electronics, automotive, aerospace, medical industry, etc.
