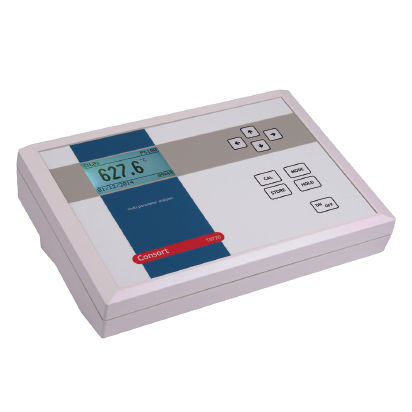

Pt100 thermometer T8710 / T8720

digitaltabletopindustrial

T8710 and T8720 are our multi channel thermometers. Each has its own speciality: • T8710 can use up to 16 thermocouples (J,K,T and E type) and is ideal for long distance measurements requiring a short response time with a reasonable accuracy. • T8720 can use up to 12 Pt100 probes and is ideal for highly accurate measurements at short or medium distances Various features are provided in each instrument. Both USB and RS232 are provided for communication with a PC. A printer can be attached directly to the RS232 interface. Overview Temperature shown in °C, °F or K. Common or individual 1- or 2-point calibration of each channel to any known temperature, eliminating variations from probe to probe. Data-logging up to 18000 data sets can be stored manually or at a programmable interval. Download free data acquisition software from www.consort.be to view, store and edit the measurements in your computer. Stores minimum/maximum readings for each channel. Display Bright LCD screen with white back-light for better readability. The interactive LCD screen provides step by step instructions in the language of your choice (English, Dutch, French, German). Hold function allows to freeze the display Alternating mode enables an automatic sequential view of all channels and allows to send the measurements simultaneously to a printer or computer
