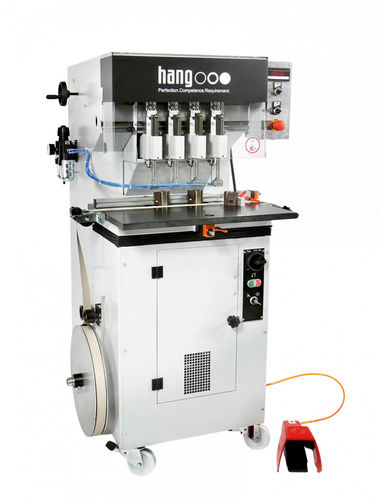

Paper perforating machine 114-30

Our 114-30 machine combines many advantages. Precision, speed and flexibility are just three of them. The drilling heads can be plugged into the machine through exchangeable indexing bars for all current standard hole patterns. This simplifies the changeover process and prevents errors when adjusting the centre distances Precision drilling heads, 1 - 4 pieces Drill diameter 3 - 14 mm Adjustment range of drilling spindles from 36-260 mm Maximum stacking height 65 mm (drill cutting length max. 70 mm) Individual drill bit length compensation (up to 6 mm) Insertion depth 130 mm Quick clamping of the paper drill bit Infinitely variable drill speed with digital speed display, 260-1800 min-1 Infinitely variable table lift speed Fast return stroke Inching mode for setting up the machine Machine moveable on steerable rollers Working height 950 mm
