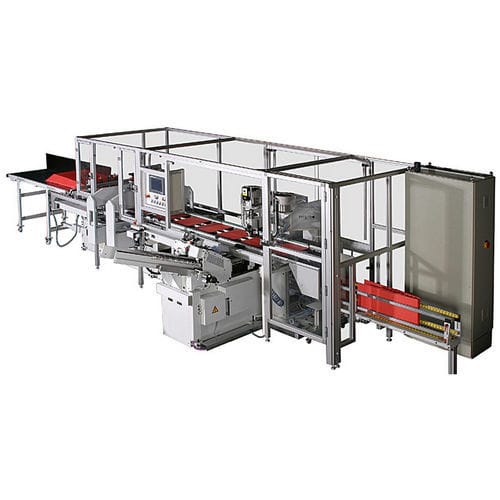

Automatic assembly line 270-00

separationfor ring binders

Here comes the generation of fully automatic riveting systems with an even larger format range. Ultra high production output due to increased cycle times and shorter set-up times. Particularly economical and safe due to wear-free drives, lower maintenance requirements, reliable mechanical feed and protective all-round cladding. Whether as a ring binder riveting system or as Type 470 in combination design for ring binders and folders, as a standard version or as a PLC version with optimised set-up times - all the arguments speak in favour of the new series. The following modules can be combined according to your individual requirements - up to a functional assembly line including modem for remote diagnosis: - Pre-stacking belt - Board feeder - Creasing station - Punching and eyeletting station (grip hole eyelet) - Riveting station - Labelling station - 3. Riveting station - Pneumatic turning device - Folding station High-performance double riveting machine with frequency-controlled brake motor drive - Automatic covering system from stacking magazine - Independent cover transport via latch feed with servo drive - Rivet feeding via high capacity electromagnetic sorters - For processing hollow rivets with 4 mm shaft diameter, length up to 19 mm, head diameter 6 - 8 or 8 - 10 mm - Automatic separation and feeding of the ring mechanism by ratchet feed, pneumatic/mechanical - extremely reliable even at maximum speed - Sensor controls at all filling levels (feeders, rivets, mechanisms, covers) - Adjustment of rivet pitch with servo motor - pitch adjustable from 82 - 300 mm Additional advantages with PLC format adjustment:
