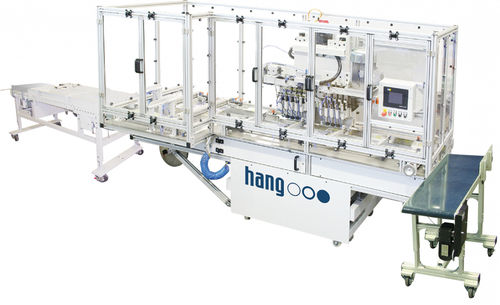

Longitudinal perforating machine 256-10

paper

The 256-10 has an output of up to 3000 stacks per hour. Transport is via two belts, drilling is carried out with two drilling stations. It drills both adhesive-bound and saddle-stitched products and is used as an inline system (not suitable for loose-leaf machines). Drill feed and material transport with servo drive Positioning device for aligning the brochures into longitudinal and transverse directions Drill stroke with servo drive Programmable drill speed and drill feed speed Fine adjustment of the drilling depth on the display Adjustment of the upper stop position of the drill to match the actual stack height Soft touchdown mode for performance increase and reduction of Simple format adjusting Adjustment of the rear stop is carried out via handwheel and threaded spindle Capacity: up to 3,000 stacks / hr. with 50 mm stack height depending on paper quality Feeding of stacks from the left (256-10) Feeding of stacks from the right (256-30)
