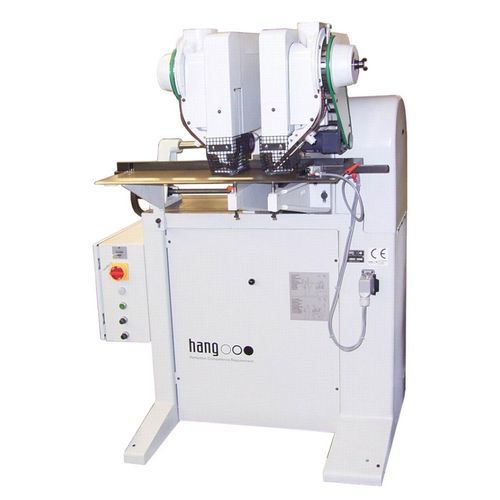

Electric riveting machine 150-05

bench-toppush button

For riveting mechanisms onto ring binders and lever arch file systems With braking motor drive Rivet feeders are designed for a rivet shaft diameter (with variable rivet shaft length and riveting head diameter tolerance of 2 mm) Standard configuration for working with hollow rivets with a 4 mm shaft diameter, length up to 19 mm, head diameter 6 - 8 mm or 8 - 10 mm Single riveting possible by shutting down the left (and middle) riveting head Adjustment of the rivet pitch via handwheel Fast and precise set-up thanks to integrated scales in the support table and easily adjustable stops Release via electric foot switch or via three microswitches in the rear and side stop, which enable fast and precise application With electric part counter
