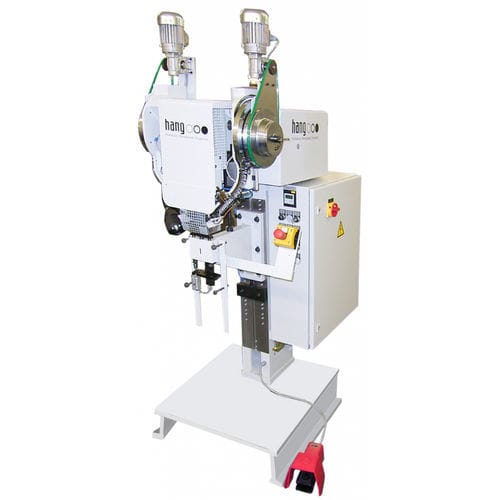

Electric riveting machine 162-30

push button

With the further models 162-40 and 162-41 Reinforced configuration, sturdy welded design Rivet feed with two motor-driven rotating sorting containers Very little effort required for swapping rivet types due to quick-change components Rivet gripper Riveting pressure controlled via height adjustment of the bottom die Positioning of pre-drilled workpieces via sprung rivet pin in the lower tool Positioning of un-drilled workpieces via stops or sighting device Drive with braking motor 162-30 with fixed offset, adjustable rivet pitch of 15-60 mm for model 162-40 and 35-100 mm for model 162-41 Riveting force 22 kN, for higher riveting forces up to max. 40 kN we recommend our model 162-41 Working depth 350 mm Release optionally with frontal finger guard and foot switch, alternatively with aiming device and foot lever or with 2-handed control
