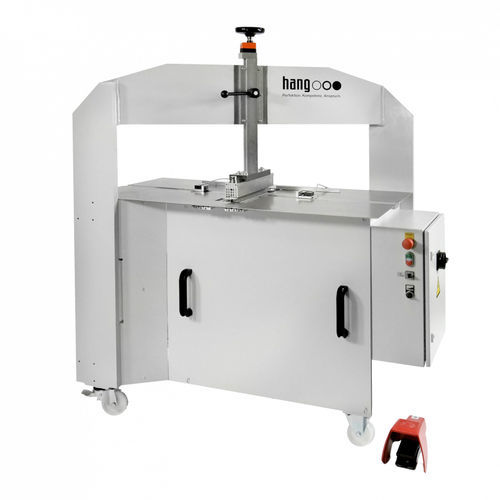

Pocket creasing machine 332-01

Heavy welded deign for grooving cardboard from 0.8 to 3.0 mm thickness using the ram and bend principle Crease width adjustable from 3 – 12 mm depending on material thickness Crease depth adjustable with a handwheel and digital position indicator Groove speed, infinitely variable Worktable with rear stop and left and right side stops Machine moveable on rollers Crease length: 360 mm (332-01) Crease length: 600 mm (332-02) Crease length: 710 mm (332-50) Format range (332-01): Cover height: 160 – 360 mm Cover widths: 320 - 1200 mm Format range (332-02): Cover height: 160 – 600 mm Cover widths: 320 - 1200 mm Format range (332-50): Cover height: 160 – 710 mm Cover widths: 320 - 1400 mm Smaller formats with special stops are possible Release via electric foot switch, alternatively via microswitch through the workpiece Capacity: 600/h, depending on operator Model 332-50: Multiple grooving machine, manual system, program controlled for up to 50 grooves
