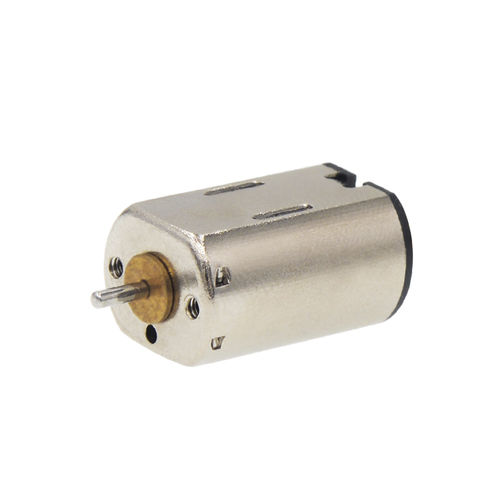

DC motor C1015Fsynchronous6 V3 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 6 V, 3 V
- Configuration
- iron-core, small
- Applications
- for the electronics industry
- Power
0.06 W, 0.7 W
(0 hp, 0.001 hp)- Intensity
0.02 A, 0.04 A
- Torque
0.0004 Nm, 0.0013 Nm
(0.0003 ft.lb, 0.001 ft.lb)- Rotational speed
5,500 rpm, 20,500 rpm
(34,557.52 rad.min-1, 128,805.3 rad.min-1)- Diameter
10 mm
(0.39 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
C1015F
1015 M20 DC Core Motor
Diameter：10mm Length ：15mm Voltage: 3V、6V Max. Output Power ：0.7W Speed：5500-20500rpm
Applications
Security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
